4. Wiring

4.1. Wiring Precautions

When performing wiring operations, the following requirements must be strictly followed:

Note

../_images/0031.png

Name: Warning

Instructions:

  • Do not touch the internal joint module components of the arm base to avoid electric shock hazard.

  • Only trained and authorized qualified engineers are allowed to perform external wiring work.

  • Before powering on, check the voltage level of the equipment; otherwise, it may cause personal injury and equipment damage.

  • To ensure safety, the equipment must be reliably grounded.

  • Do not connect the power input terminal to any other terminal except the power connector, otherwise the product may be damaged.

  • The input voltage connected to all terminals must not exceed the allowable range.

  • Ensure the wiring sequence is correct, the connection is reliable and the insulation is reliable before power is applied, otherwise the product may be damaged.

4.2. System wiring

The humanoid robotic arm ART3-R7 has four configurations: configuration one is a single arm, configuration two is a single arm plus a controller, configuration three is dual arms, and configuration four is dual arms plus a controller and a brancher. Its wiring diagrams are shown in Figures 4-1, 4-2, 4-3, and 4-4.

The power supply voltage of the humanoid robotic arm ART3-R7 is DC48V, and the power supply voltage of the controller and the brancher is DC24V, as shown in Figure 4-5 and 4-6.

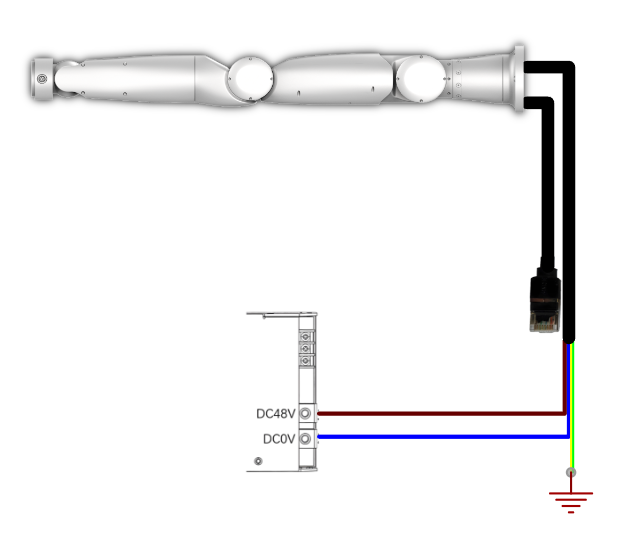

Figure 4-1 Wiring Diagram of Configuration 1

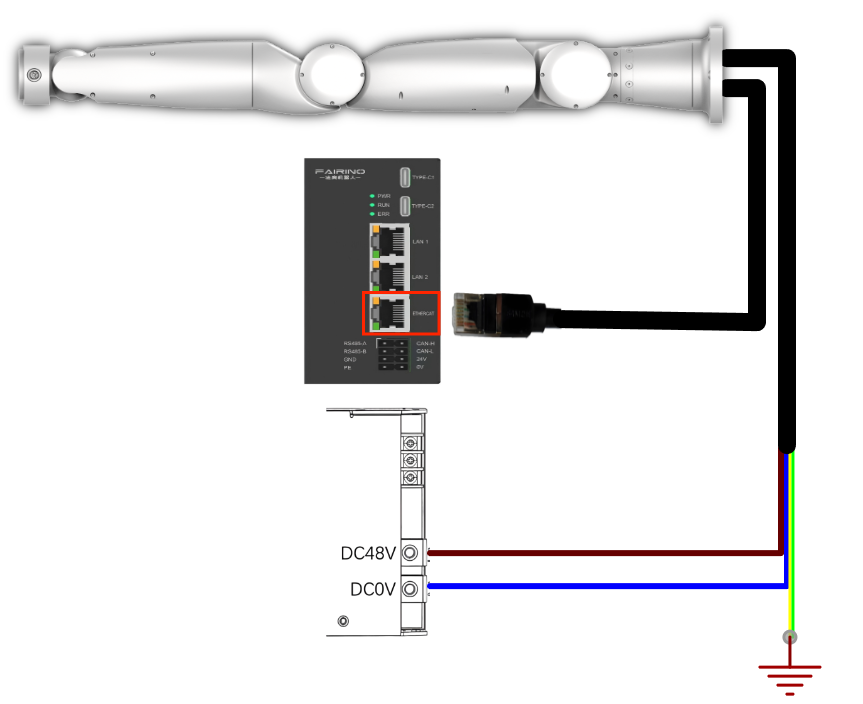

Figure 4-2 Configuration Two Wiring Diagram

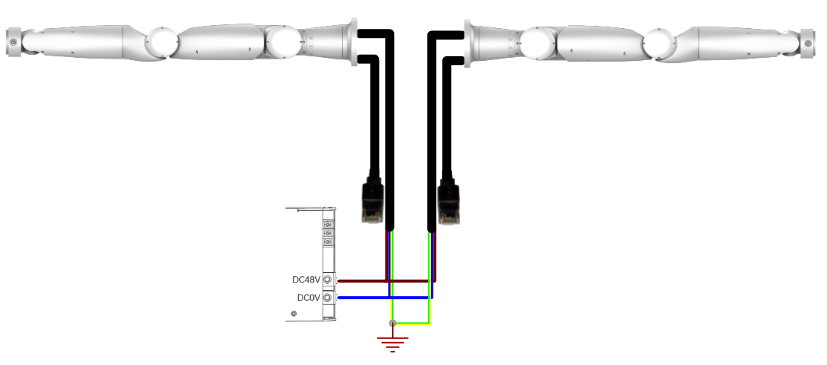

Figure 4-3 Configuration Three Wiring Diagram

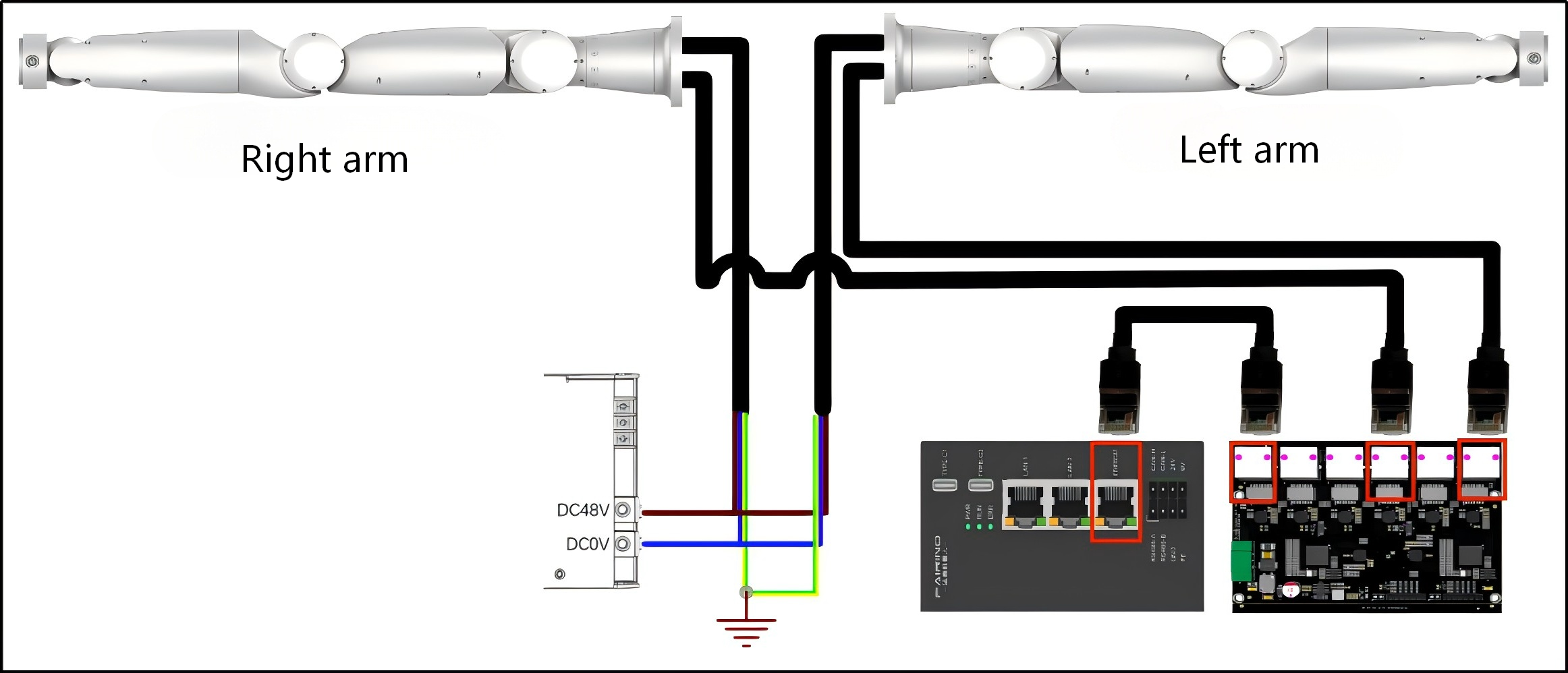

Figure 4-4 Configuration Four Wiring Diagram

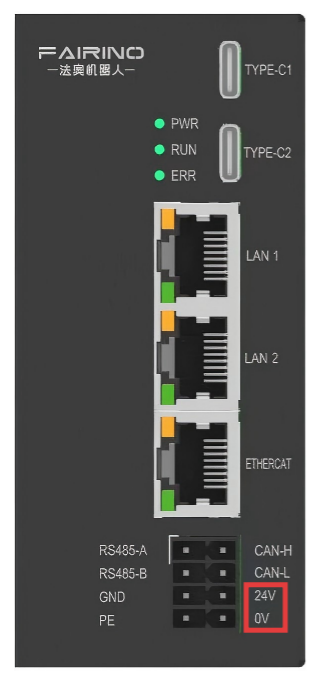

Figure 4-5 Controller Wiring Location

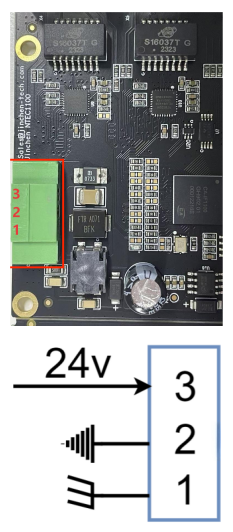

Figure 3-6 Connector Positions of the Brancher

4.3. Host computer debugging wiring

When debugging the robotic arm, connect the host computer and controller with an Ethernet cable, as shown in Figure 4-7.

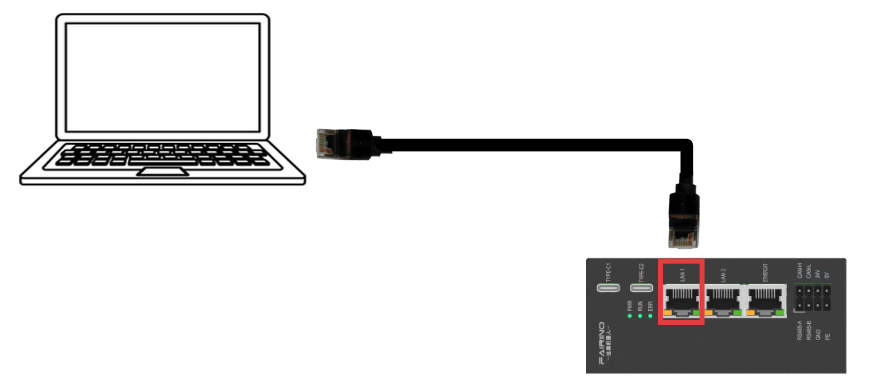

Figure 4-7 Upper computer and controller wiring diagram

Note

../_images/0011.png

Name: Note

Instructions:

  • The 24V and 48V power supply are required to be provided by yourself.

  • The host computer debugging network cable is required to be provided by yourself.

  • The network cable between the controller and the distributor is required to be prepared by yourself.
